本页二维码
Lao.si
伊卡洛斯 超级跑车
ICARUS Supercar
机械组
2019
1932 PCS
8+
宇星模王MOULDKING
13067
Rebrickable
MOC-4562
原作

原作者 荒井円(Madoca1977),于2016年3月发布。
rebrickable 编号为 MOC-4562 。
原作使用4个L马达,一个伺服电机,2个SBrick及2个小锂电池盒,颗粒数为 1908。


原作者对作品的说明描述:

ntroduction

The name comes from a man who desired to fly higher using his technology.

Many times I have tried to realize the speed what supercar MOC should perform. I needed “wing” called buggy motor, but all I had is a bunch of PF motors. So I connected motors together using “wax” called SBrick. Like Icarus of Greek myth, higher speed and torque may be lethal for the model itself...

  • Weight: 1760g
  • Propulsion: 4x PF L motor for rear wheel drive
  • Steering: PF Servo motor
  • Front and rear lights: 2x PF light
  • Powered by: 2x SBrick and 2x 8878 rechargeable battery box

Features:
- independent suspension for all wheels

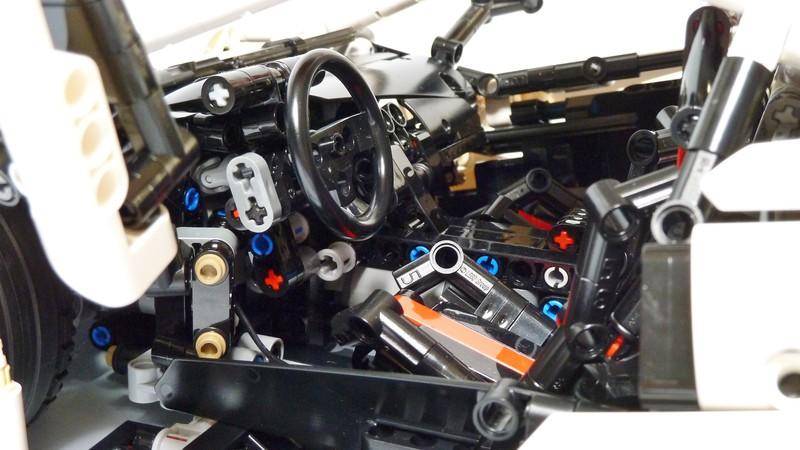

- working steering wheel
- manually adjustable rear spoiler

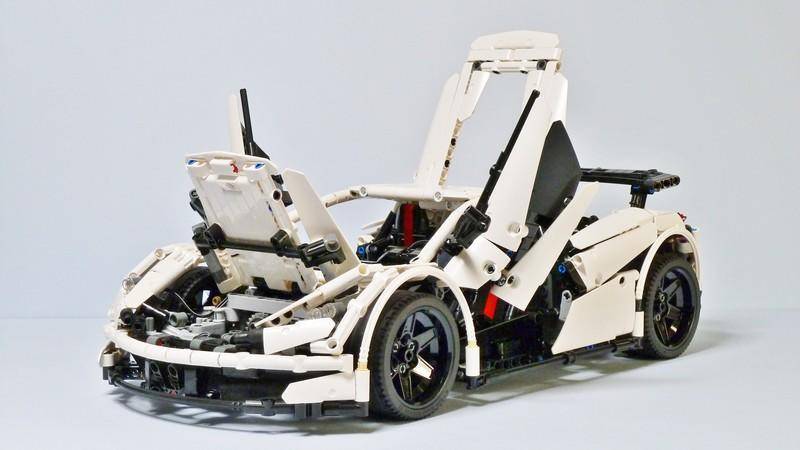

- opening doors, hood, engine cover, glove box

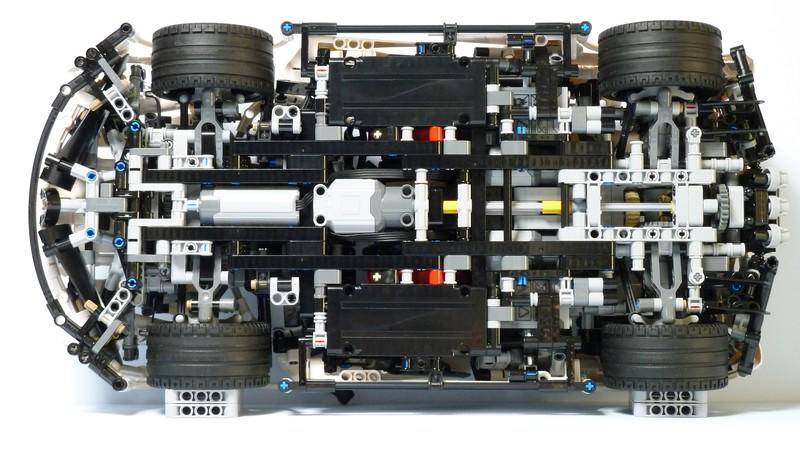

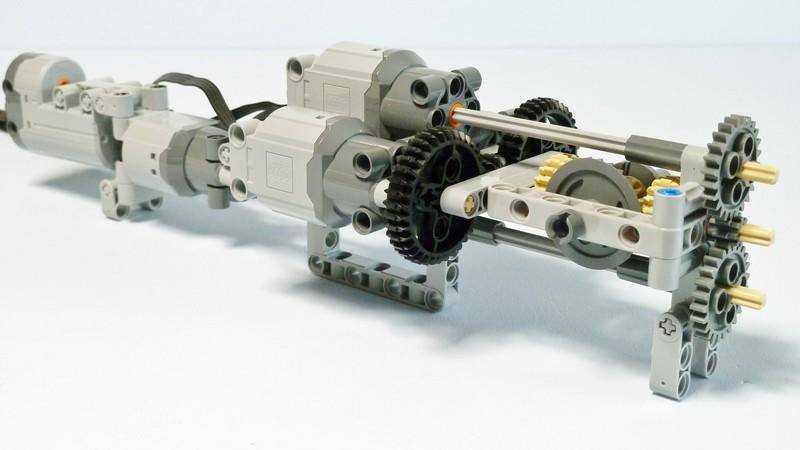

Drivetrain

You may think it is not fast enough, but for me it was a relatively success. Surprisingly, gears and CV joints have never damaged or popped out even at the time of maximum acceleration. :thumbup:

Although I had designed its drivetrain carefully, I was not sure if small bevel gears in differential withstand the load.

Two 20T bevel gears of each side divide the load from differential equally. In this setting differential doesn't move back and forth easily. That means differential and 20T bevel gears hardly ever disengage. So they keep rotating smoothly even under high load.

In this MOC there are three L motors (and two SBricks, two battery boxes, bunch of wiring) on the supposed location of V8 engine. So if someone build manual version with gearbox, there would be enough room for it.

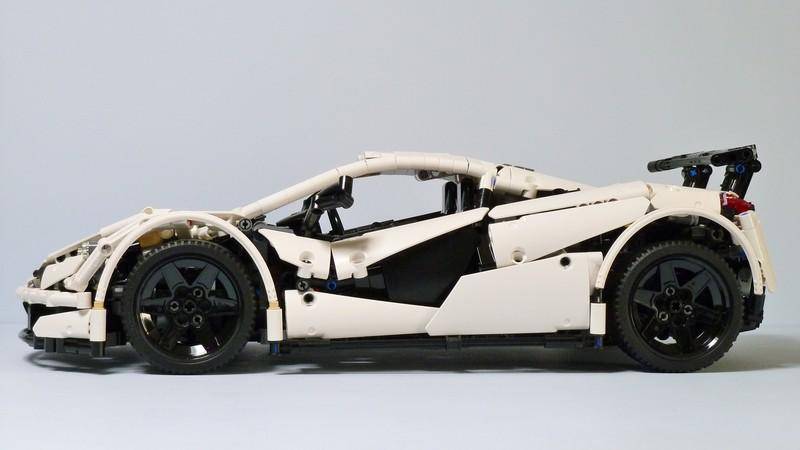

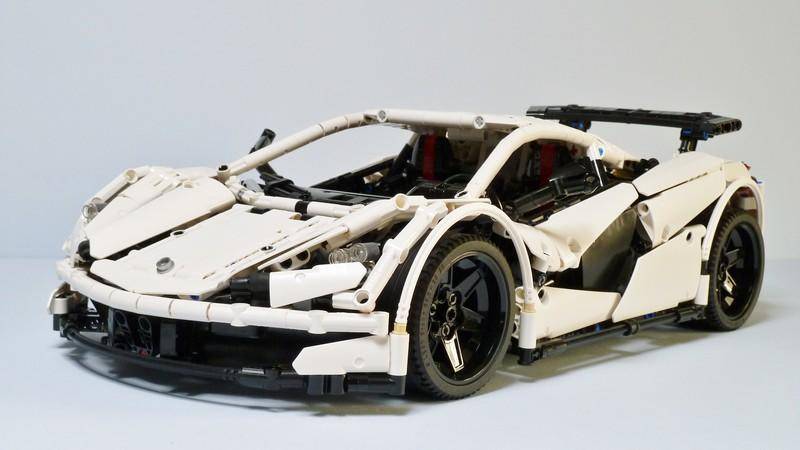

Body design

As expected, building 1:10 scale supercar was very hard. Especially the body work. I've built one three years ago, but it was primitive MOC in every way.

New MOC is heavily inspired by modern McLaren supercars. I tried to build their curved shapes using rather technic panels than flex axles. Front and rear light section happened to become different from the original mainly because of the positon of LED. Though finished model is not a copy of P1, I am happy with the result of realizing proper mid-engine proportion.




伊卡洛斯 超级跑车(ICARUS Supercar)属于机械组系列积木套组,整个套组包含 1932 个积木颗粒。首发于2019年。
展开全部内容

相关设计师:
相关网页链接
MOCRebrickable
https://rebrickable.com/mocs/MOC-4562/
评测宇星模王​ 13067 宇星车模系列 伊卡洛斯 by 积木世界中的CK
https://mp.weixin.qq.com/s?__biz=MzI2NTI4NDAxNg==&mid=2247565290&idx=1&sn=1096ac6f1bb188eb885cd632c6be5f56
600+
宇星模王的实力果然深不见底啊……每一款新品都带来惊喜!这套伊卡洛斯除了对应APP外,还是自家首款遥控超跑,另外还附上灯组,这配置若成为标准的话,国产遥控科技的水平将会变得非常之高啊! 零件方面,用上全高砖零件令成品质量能达至高水平 。不过结构用上很多特殊设计,令本来偏紧的零件变得很难组装,其中以长十字辐最为严重 。而大家组装时都会发现到有很多种颜色的插栓,我个人觉得若零件没有结构上的差异,或者特殊用途,其实没多大必要分成这么多的 颜色。 说明书中发现有少部分错误,大家在组装时要注意比较前后步骤 便可。 成品外观非常讨好,速度也不错。除了拼装难度稍高之外,绝对属于可入手的好东西 !
原作[MOC] ICARUS Supercar
https://www.eurobricks.com/forum/index.php?/forums/topic/122648-moc-icarus-supercar/
300+
原作者发帖
评测宇星模王13067伊卡洛斯评测(二) by 积木老亮
https://mp.weixin.qq.com/s?__biz=MzI4NzM3ODI4Ng==&mid=2247484031&idx=1&sn=abde263efb0ae32cb6a0d0cf099d5b7f&token=1141788291
200+
原作LEGO MOC-4562 ICARUS Supercar (Technic 2016) | Rebrickable - Build with LEGO
https://rebrickable.com/mocs/MOC-4562/Madoca1977/icarus-supercar/
200+
评测宇星模王13067伊卡洛斯评测(一) by 积木老亮
https://mp.weixin.qq.com/s?__biz=MzI4NzM3ODI4Ng==&mid=2247484018&idx=1&sn=fb313180e38110b45e9b1635bd97ae9d
200+
白色发黄看着不爽,全部换成红色了 by linx89
http://tieba.baidu.com/p/6069441621
200+
MOC积木跑车中的速度之王-宇星模王13067伊卡洛斯评测 by 积木老人
https://post.smzdm.com/p/a78zq2mg/
100+
